How to manage cables on a standing desk
Cable clutter under a standing desk is not just untidy, it is a trip hazard and a fast way to damage a power lead at the lift column. Fitting an electrical riser for standing desk setups solves the core problem: it lifts power and data points off the floor and onto the desktop, so cables travel with the desk instead of dragging against it. This guide covers the tools, steps and fixes for running cables clean from floor to full height, whether you are managing one desk or fitting out a bank of them in 2026.

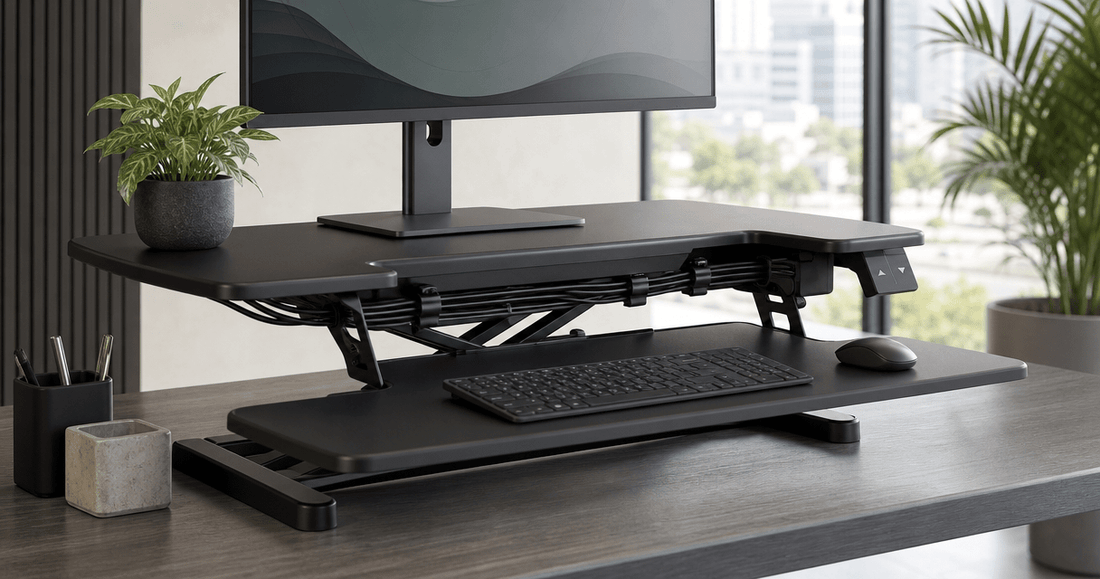

The Rapid Flux Electric Desk Riser is a common starting point for businesses adding sit-stand function to an existing desk, and the cable routing principles below apply whether you are retrofitting a riser or buying a dedicated height-adjustable desk.
Key Takeaways
- Cable slack must match the full lift range: A standing desk that moves between roughly 650mm and 1,300mm needs cable spines and leads long enough for the full 650mm of travel, not just the current desk height.
- Cable trays remove the main trip hazard: Mounting a cable tray under the desktop keeps the power board and permanent leads off the floor, which is the most common trip point in open-plan offices.
- Cable spines protect leads at the lift column: A flexible cable spine clipped to the leg column moves with the desk instead of catching on the scissor mechanism.
- An electrical riser cuts loose cable count: An electrical riser for standing desk setups lifts power and USB points to worktop height, reducing the number of leads running back to a floor-level power board.
What Do You Need to Manage Standing Desk Cables?
A tidy cable run needs a handful of specific parts, not a drawer full of zip ties. Get these sorted before the desk goes back against the wall.
- Cable tray or basket that clips under the desktop
- Cable spine or sleeve rated for continuous flex at the lift column
- Power board or desktop power module, ideally rated to at least 10 amps
- Cable ties, velcro straps or clips (skip rigid zip ties near the lift mechanism)
- Tape measure to check the full lift range before cutting cable lengths
How Do You Manage Cables on a Standing Desk?
Step 1: Measure the Full Lift Range First
Wind or drive the desk to its lowest setting, then to its highest, and note both numbers. Buy cable lengths and spines rated for that full range, and build in at least 300mm of extra slack per lead.
Step 2: Group and Label Every Cable
Separate cables into three groups: permanent power, monitor or peripheral data, and anything removable like a laptop charger. Label each one at both ends.
Step 3: Fit a Cable Tray Under the Desktop
Position it toward the back of the desk, close to the lift column, so it does not interfere with knee clearance when seated.
Step 4: Run a Cable Spine to the Lift Column
A cable spine clips to the leg column and carries cables down to floor level, moving with the desk. It should sit in a loose curve at the lowest desk height, never stretched straight.
Step 5: Install the Electrical Riser at Desk Height
An electrical riser mounted to the desktop brings power outlets and USB ports up to worktop level. Mount the riser within easy reach of the seated position and route its supply cable through the cable spine from Step 4.
Step 6: Separate Power Leads from Data Cables
Run power cables and data cables in separate channels of the cable tray where possible, or bundle them at least 50mm apart.
Step 7: Test a Full Lift Cycle Before Loading the Desk
Run the desk through a full lift cycle from lowest to highest and back, watching every cable as it moves. Any lead that pulls tight, catches or drags needs more slack or a repositioned clip.
Step 8: Recheck After Adding Monitor Arms or a Docking Station
Once monitor arms or extra peripherals go on the desk, run the lift cycle test again since added weight changes how the spine sits at the lift column.
How Do You Fix Common Cable Management Problems?
| Problem | Fix |
|---|---|
| Cable pulls tight at full standing height | Add slack equal to the full lift range and re-clip the cable spine with a looser curve. |
| Cable tray sags under a loaded power board | Move to a tray rated for the combined weight and add a second mounting point. |
| Cables catch on the scissor mechanism | Reroute through the spine rather than loose against the frame. |
| Power board overheats or trips | Check the rated load and split high-draw devices across two boards. |
What Tools and Products Help with Standing Desk Cable Management?
The Klass Single Straight Height-Adjustable Desk and the Boost Light Electric Height-Adjustable Desk both have a frame profile that suits a clip-on cable tray and spine without extra brackets.
If storage sits under the desk, check clearance against a mobile unit like the Go Steel Mobile Pedestal before fitting a cable tray, since both compete for the same under-desk space.
